- Place of Origin: Shandong, China
- Brand Name: Suke
- Model Number: SK-300W
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

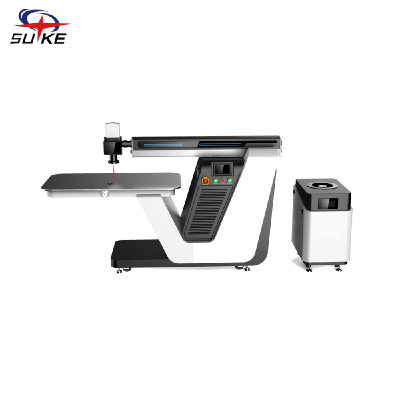

Machinery description:
The working principle of the laser welding system based on laser high heat energy and focus point of welding technology, effectively handle all small parts of welding, makes up for the traditional argon arc welding technology in repair welding of fine surface. To avoid the thermal strain and post-processing the two threshold, greatly improving the connection strength and quality of the metal or metal signs.
Application Materials :
Used for various of stainless steel, copper, titanium word words, aluminum alloy, galvanized words, iron, stainless steel, iron and low carbon steel with all kinds of advertising words and the welding of metal signs
Characteristic description:
1.Red light fast welding point, the CCD observation more intuitive
2.Welding speed is 6 times more than conventional argon arc welding
3.Independent research and development of the most stable laser power supply, heat affected zone is small, small thermal deformation of the workpiece
4.Can traditional soldering or welding argon arc welding was unable to complete the complicated words, super fine print and special-shaped logo
5.Processing and no noise, no pollution to the environment
6.Ultrafine locating rod, also do not need to adjust the position of light spot on the corner font
7.The laser cavity can be adjusted up and down around so as to adapt to different size and the height of the fonts and logo welding.
Specification:
Model No. | SK-D3-200W | SK-D3-300W | SK-D3-400W |
Laser Power | 200W | 300W | 400W |
Laser Source | Pulsed Nd:YAG | ||
Output Optical Path | Single Path(standard) | Double Path (standard fiber) | Single Path(standard) |
Laser Wavelength | 1064nm | ||
Single Pulse Energy | 80J | 100J | 120J |
Working Table Scale | 750*1000mm | ||
XYZ Stroke | X=700mm,Y=150mm,Z=200mm(manual) | ||
Power Supply | 220V±10% ,50/60Hz | 380V±10% ,50/60Hz | |
Power Consumption | 6KW | 9KW | 12KW |
Beam Diameter | 0.1~3.0mm | ||
Pulse Width | ≤15ms | ||
Pulse Frequency | 1-50Hz | ||
Focal Length | 150mm/200mm | ||
Cooling System | water coolin | ||
Observation system | CCD camera | ||
Packaging dimensions | 1160*610*1150mm 1420*870*1100 mm | 1540*950*1500mm 585*490*980mm | 1260*710*1150mm 960 710*1150mm 1420*870*1100mm |
Gross weight | 319kg | 329kg | 342kg |
Our service :
| 24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online. |
| One-year warranty is provided. (The detailed reference will be written into the final contract.) |
| Professional staff for installation and training if needed. |
| Spare parts are supplying on time or doing some inventory if promising certain sales volume. |
| Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful. |
| If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype. |
Packaging and shipping
1.Durable wooden case or as per required.
2.The delivery lead time would be 5-7 working days after recieving the payment.
3.As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder
