- Size: 7.5
- Place of Origin: jinan
- Brand Name: Suke
- Model Number: SK-1610
- Weight: 500.000 kg
Features

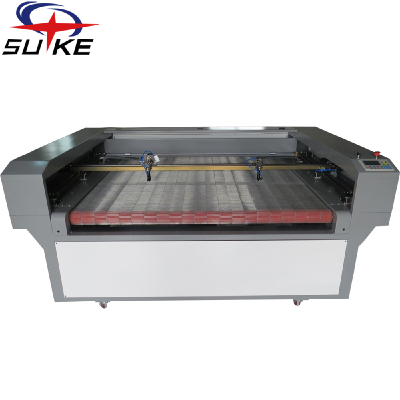

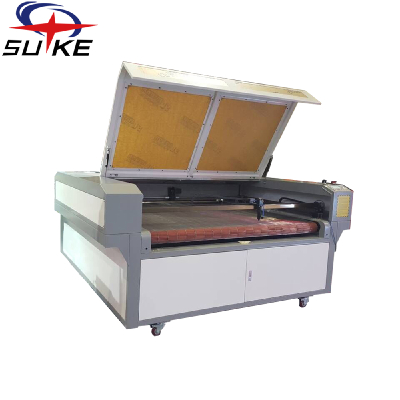

The machine adopts CO2 laser tube and high performance power supply , it is equipped with imported linear guide and DSP control system ,.
It has high precision and it is the ideal choice for many industries.
1. RD control system with laser work software or leetro control system optional
2. Leadshine driver M542
3.Water pump, air pump, exhaust fan assistant equipment
4.Electric up and down platform
5.Square guide of X axis. Round rail of Y axis
6.Water protection system
- Size: 7.5
- Place of Origin: jinan
- Brand Name: Suke
- Model Number: SK-1610
- Weight: 500.000 kg
Machine parameter of auto feeding laser cutting machines for wooden model
Model | SK1610 | ||||
Working Area | 1600*1000mm | ||||
Laser Power | 60w/80w/100w/130w//150w | ||||
Laser Type | CO2 Sealed Laser Tube , 10.6μm | ||||
Cooling Type | Water Cooling | ||||
Engraving Speed | 0-60000mm/min | ||||
Cutting Speed | 0-40000mm/min | ||||
Laser Output Control | 0-100% set by software | ||||
Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm | ||||
Highest Scanning Precision | 4000DPI | ||||
Locating Accuracy | ≤ 0.01mm | ||||
Controlling Software | DSP Control System | ||||
Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||||
Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. | ||||
Color Separation | Yes | ||||
Drive System | High-precision 3-phase Stepper Motor | ||||
Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||||
Power Supply | AC110V/220V 10%,50HZ/60HZ | ||||
Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) | ||||
Applicable Industries:
Garment, leather, cloth toy, computer embroidery and clipping, electronics ,handicraft, advertisement, decoration, building upholster, printing and packing, paper products and other industries.
Cutting | Engraving | |
Wood | √ | √ |
Melamine | √ | √ |
Matte Board | √ | √ |
Wood veneer | √ | √ |
Cork | √ | √ |
Corian | √ | √ |
Anodized Aluminum | √ | |
Painted metals | √ | |
Metal | √(1.5mm) | √ |
Plastic | √ | √ |
Fiberglass | √ | √ |
Acrylic | √ | √ |
Fabric | √ | √ |
Glass | √ | |
Coated metal | √ | |
Ceramic | √ | |
Delrin | √ | √ |
Cloth | √ | √ |
Mylar | √ | √ |
pressboard | √ | √ |
Leather | √ | √ |
Rubber | √ | √ |
Marble | √ |
