- Size: 13
- Place of Origin: Jinan
- Brand Name: Suke
- Model Number: SK-1325C
- Weight: 700.000 kg
1. Applicable of 2018 cnc router wood
Suke wood cnc router machine is a new economical model, with high efficiency and accuracy for wood/MDF/acrylic,
can be used for cutting and engraving solid furniture, mahogany furniture, MDF paint door, solid wood door, composite door, cupboard door and window, beside cabinet, folding screen, ect., passing CE, FDA,ISO9001.

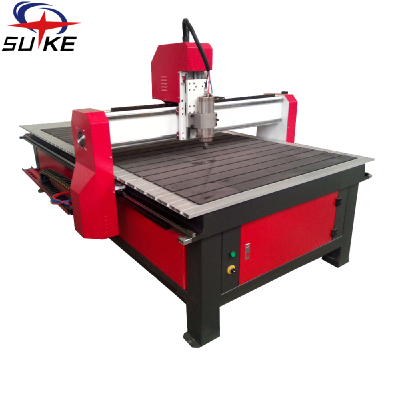

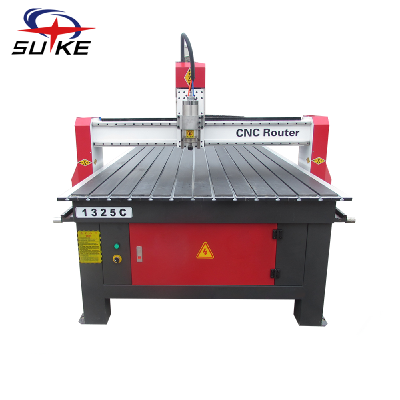

2. Features and parts pictures of cnc router wood
1. Multiple spindles can engrave same design simultaneously to improve processing speed greatly
and complete the work of several machines.
2. Products stay in coherence and high quality during mass produce.
3. Single spindle can work independently for small processing volume to control production costs
effectively and reasonably.
4. Appropriate and reasonable configuration is adjusted to fit material and work request.
5. Numbers and operate mode of spindle can be customized.
3. Technical parameters of cnc router wood
Model | SK 1325-1 |
X-Y-Z axis working area | 1,300 x 2,500 x 200mm |
Working Holding | By clamps |
Resolutions | 0.02mm |
X-Y movement | Gear wheel |
Max. speed | 1500mm/min |
Working speed | 1000mm/min |
Spindle | 2.2 Kw, water cooling, 24,000rpm |
Drive mode | stepper |
Working voltage | AC220V/50-60Hz, 3-phase |
Command code | G code, u00, mmg, plt |
Software | Original Type3 or wentai software |
Controls | DSP |
Vaccum suction | Yes |
Optional parts | 1. air cooled type spindle 2. Bigger or smaller power spindles (6kw or 2.2 kw) 3. High-grade cooling system (chiller, it has alarming system) 4. double-head or more heads 5. servo motors (China brand or Japan brand) 6. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc) 7. DSP Control system ,or Mach 3 8. other customerized features |
4.After sales service
1. One year for whole machine.
2. Small parts will be free for you as replacement, such as common cutter.
3. Lifespan technical support for free.
4. Detailed user manual in English and video to show how to use the machine and maintance.
5. If you meet problem when using machine, will be answered within 24 hours.
- Size: 13
- Place of Origin: Jinan
- Brand Name: Suke
- Model Number: SK-1325C
- Weight: 700.000 kg
Technical Parameters of cnc router wood
Model | SK 1325-1 |
X-Y-Z axis working area | 1,300 x 2,500 x 200mm |
Working Holding | By clamps |
Resolutions | 0.02mm |
X-Y movement | Gear wheel |
Max. speed | 1500mm/min |
Working speed | 1000mm/min |
Spindle | 2.2 Kw, water cooling, 24,000rpm |
Drive mode | stepper |
Working voltage | AC220V/50-60Hz, 3-phase |
Command code | G code, u00, mmg, plt |
Software | Original Type3 or wentai software |
Controls | DSP |
Vaccum suction | Yes |
Optional parts | 1. air cooled type spindle 2. Bigger or smaller power spindles (6kw or 2.2 kw) 3. High-grade cooling system (chiller, it has alarming system) 4. double-head or more heads 5. servo motors (China brand or Japan brand) 6. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc) 7. DSP Control system ,or Mach 3 8. other customerized features |
