- Place of Origin: Shandong, China
- Brand Name: Suke
- Model Number: SK-F50W
Specifications

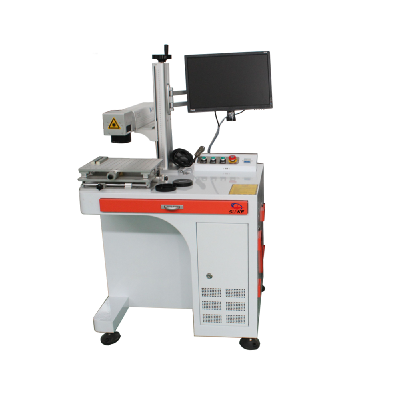

China fiber laser 50w for marking
1)110x110mm mark scope
2) High laser beam quality
3) No consum
Model | SK-F50W |
Feather | Adopt Centry Sunny Galvanometer, high marking speed |
Applicable materials | Used to mark on metal and parts plastic. Such as: 1. Auto parts, electronic, hardware 2. Pharmaceutical packaging, medical devices, eyeglasses and clocks. 3. Tobacco marking, bottle marking,etc |
Machine Introduction:
1. Fiber laser marking machine is a new product developed by our company with the advance laser technology.
2. Adopt fiber laser to output laser, then through high scanner speed galvanometer to realized the marking.
3. Electro-optical conversion rates is up to 70%, with better laser beam than YAG marker.
4. Without maintenance cost for whole machine.
Machine Feather
1. Centry Sunny Galvanometer, high marking speed.
2. Small volume, and small weight, about 120kg
3. Without any consumables, low power consumption, , the lower is less 500w.
4. Air cooling, reduce energy consumption.
5. Product depreciation costs can be greatly reduced, fully meet customers high-volume, stable production
Technical Parameter
Laser power | 10w/20w30w/50w |
Beam quality | M2<1.5 |
Laser repetition frequency | ≤100KHz |
Standard marking scope | 110x110mm |
Mark depth | <1.2mm |
Mark speed | <7000mm/s |
Mini line width | 0.01mm |
Mini character | 0.05mm |
Repeatability | ±0.001mm |
Machine power | ≤500W |
Voltage | 200V/50Hz/10A |
Cooling type | Air cooling |
Optional parts | 1.Germany IPG & Unite Kingdom SPI Laser 2. 150x150mm, 200x200mm mark scop 3. Rotary device Φ80mm |
Warranty term:
1. One year quality guaranty. Lifetime maintenance free of charge.
2. Free training course at our plant.
3.We will provide the consumable parts at an agency price when you need replacement.
4.24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary
