Product Details

Optional parts:

1. RECI type laser tube (8000-10000 hours life time)

2. Bigger power tubes (100w, 130w, 150w etc)

3. High-grade cooling system (from 100w or bigger than 100w better to choose this)

4. double-head or more heads

5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles etc)

6. irregular rotary clamp

7. servo motor

8. Red pointer

9. Ball screw transfer

10. Auto feeding system etc.

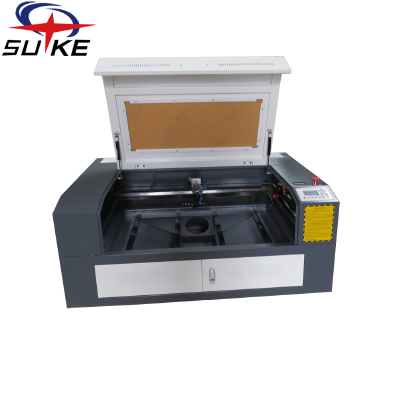

Machine parameter of die board laser cutting machine price with CE

Model	Laser cutting machine SK9060
Working area	600*900mm
Laser tube power	60W/80W/100W/130w/150w
Laser tube type	Sealed CO2 laser tube, water-cooling, 10.6um
Life of laser tube	1500 hours
Max Engraving speed	0-60000mm/min
Cutting speed	0-30000mm/min
Cutting thickness	1-20mm acrylic (others determined by the material )
Resolution ratio	<0.01mm
Location precision	<0.01mm
Min shaping character	Chinese 22mm,English11mm
Support graphic format	DST, PLT, BMP.HPGL,DXP and AI
Software supported	CorelDraw, AutoCAD, Photoshop
Power supply	AC110-220V 50-60HZ
Operating temperature	0– 40 centigrade degrees
Operating humidity	5%-95% Free of condensed water
Interface	USB
Assistant equipment	Exhuast-fans, water pump, air pump
Driving system	stepper
Control system	DSP
Consuming power	<1,500W
Net weight	580kgs
Gross weight	600kgs
Package size	212171130cm
