- Place of Origin: Shandong, China
- Brand Name: Suke
- Model Number: SK-1500W
- :
- :
- :
- :
- :
- :
- :
- :
- :
Machine introduction

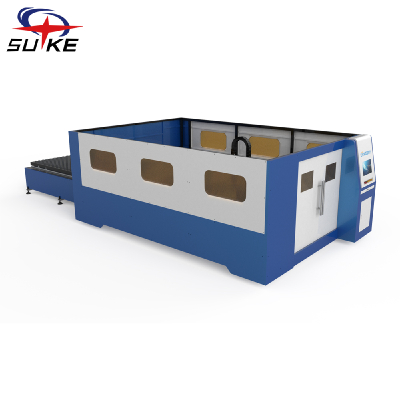

F-1530 fiber laser cutting machine adopts IPG laser device which has international advanced laser technology. Equipped with efficient transmission system by Japan high-precision gear rack after grinding process and high-precision linear guide. Advanced automatic Cypcut control system, group into high precised CNC fiber laser cutting machine.
Mainly applicable for carbon steel, stainless steel, mild steel and aluminum alloy etc such metals’ cutting and molding.With advantage of High speed, High precision, High efficiency and High cost performance. This model is metal processing industry’s first considering metal cutting machine.
Applicable materials and industry
Suitable for aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, and ventilation pipes, signs, metal and other metal parts processing industry
1000w fiber laser cutting parameters
| |||||||
Material | Thickness(mm) | Speed m/min | Air pressure (Mpa) | Defocusing distance(mm) | Gas | Cutting height (mm) | Nozzle diameter(mm) |
Stainless steel | 1 | 28 | 1.5 | 0 | N2 | 0.7 | Two layers 1.5 |
2 | 4 | 2.0 | 0 | N2 | 0.5 | Two layers 1.5 | |
3 | 2 | 2.0 | -1.3 | N2 | 1 | Two layers 1.5 | |
4 | 1 | 2.5 | -3 | N2 | 0.5 | Two layers 2.0 | |
5 | 0.8 | 2.5 | -3 | N2 | 0.5 | Two layers 2.0 | |
Carbon Steel | 1 | 18 | 0.6 | -0.5 | O2 | 0.5 | Two layers 1.5 |
3 | 3 | 0.4 | 0.5 | O2 | 1 | Two layers 1.5 | |
5 | 1.2 | 0.3 | 0.5 | O2 | 1.2 | Two layers 1.5 | |
6 | 1.0 | 0.15 | 1 | O2 | 1.2 | Two layers 1.5 | |
8 | 0.8 | 0.1 | 2 | O2 | 1 | Two layers 2.0 | |
10 | 0.7 | 0.3 | 2 | O2 | 1.5 | Two layers 2.0 | |
12 | 0.6 | 0.1 | 1 | O2 | 1.5 | Two layers 2.0 | |
Aluminum Or copper | 0.8 | 20 | 1.0 | 0 | N2 | 0.7 | Two layers 2.0 |
1 | 8 | 1.0 | 0 | N2 | 0.7 | Two layers 2.0 | |
2 | 2 | 1.0 | -0.5 | N2 | 0.7 | Two layers 2.0 | |
3 | 1 | 1.5 | -0.5 | N2 | 0.7 | Two layers 2.0 | |
The parameters above are for real, we test in the workshop. There will be changes during the operation. |
PARAMETERS
Machine Model | SK-1530 |
Max. working area | 1500mm x 3000mm |
Laser source | IPG 1000 watts fiber laser |
laser head | Raytools cutting head or China WSX head |
Control system | Cypcut system |
Cutting thickness | 0.5-12mm metals |
Laser wavelength | 1080 nm |
Rated power | 10-100% |
Water chiller power | 4 Kw |
X,Y-axis location accuracy | ±0.02mm |
X,Y-axis repeat location accuracy | ±0.02mm |
X,Y-axis fast moving speed | 100 m/min |
X,Y-axis max. cutting speed | 45 m/min |
Min. cutting line width | 0.02-0.08 mm |
Max platform bearing | 1000 KGS |
Machine weight | 4000 KG |
Voltage | 380V, 50HZ |
Max total power | 10-20KW/hour |
After sales service
a. 1year warranty for the whole machine
b. 2 years warranty for the fiber laser source
c. Life-long maintenance
d. In the warranty period,if it break down or some parts damaged(Except the human factors and the factors of force majeure),the seller should be responsible for repair for free,the parts need to be replaced will be provided from seller for free(Except the quick-wear part).
e. After the warranty period expired,the buyer only need to pay the actual maintenance cost.
f. XT Laser will pay a return visit all customers for several times one year,and will provide technical support service anytime,and also provide spare parts anytime the buyer want.
g. After sales service response time: quick response within 8 working hours,after receive the repair call, our after sales engineer will reply as soon as possible.
