- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 2
- Place of Origin: China
- Brand Name: Suke

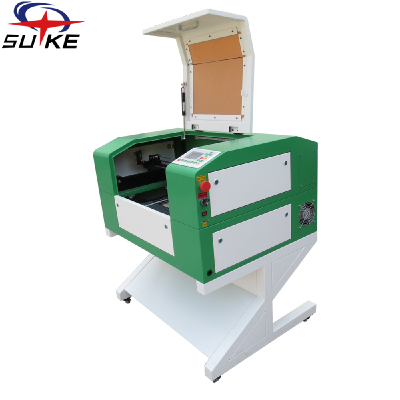

- Model Number: sk5030
- Weight: 250.000 kg
Features:
Front and rear hole to pass long materials
Modern design and beautiful appearance
Use imported Taiwan Hiwin linear guide, more durable and high precision
Water protection switch ,safety switch and limit switch
Adopt DSP control system, and USB offline operation,LCD screen

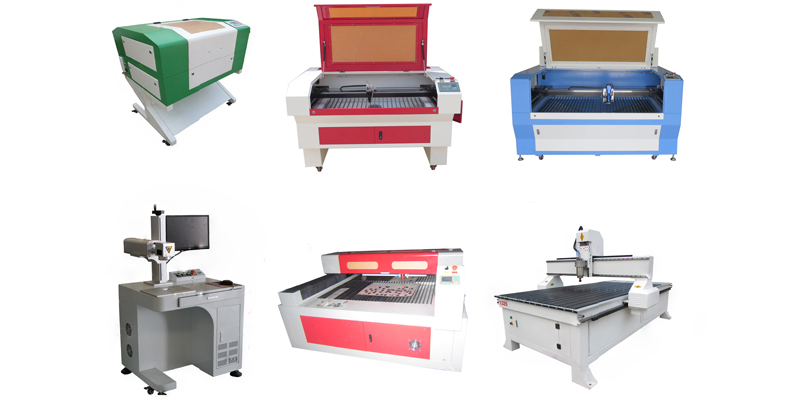

powerfull production ability,can produce all kinds of laser machines, like double head laser , four head laser ,CCD camera laser,auto feeding fabric laser cutter,YAG metal laser engraver,separate marble laser etc.
Applicable materials:
Non-metal materials such as Acrylic,double color board, Plexiglas, glass, bamboo and wood, rubber, marble, granite and tiles, leather
Applicable industry:
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
Technical parameters:
Model | SK5030 |
Working area | 500*300mm(19.7*11.8inch) |
Laser power | 40W,60W,80W (can be optional) |
Engraving speed | 0-6000mm/min |
Cutting depth | 0-20mm organic glass (others determined by materials) |
Resetting positioning accuracy | ±0.01mm |
Power supply | AC110-220V 50-60HZ±10% |
Min.shaping character | Chinese 2mm*2mm /English 1mm*1mm |
Supported format graphics | BMP/HPGL/PLT/DST/DXP/AI |
Software supported | CorelDraw, AutoCAD,Photoshop |
Resolution ratio | |
Communication Terminal
| Stand Parallel Interface /USB port
|
Operation system | Windows XP,Windows 2007 |
Driving system | stepper |
Gross power | <1000W |
Operating temperature | 5C-40C |
Operating humidity | 5%-95%(free of condensed water |
Assistant equipment | Exhuast-fans,water pump,iar pump |
- Size: 2
- Place of Origin: China
- Brand Name: Suke
- Model Number: sk5030
- Weight: 250.000 kg
Technical parameters:
Model | SK5030 |
Working area | 500*300mm(19.7*11.8inch) |
Laser power | 40W,60W,80W (can be optional) |
Engraving speed | 0-6000mm/min |
Cutting depth | 0-20mm organic glass (others determined by materials) |
Resetting positioning accuracy | ±0.01mm |
Power supply | AC110-220V 50-60HZ±10% |
Min.shaping character | Chinese 2mm*2mm /English 1mm*1mm |
Supported format graphics | BMP/HPGL/PLT/DST/DXP/AI |
Software supported | CorelDraw, AutoCAD,Photoshop |
Resolution ratio | |
Communication Terminal
| Stand Parallel Interface /USB port
|
Operation system | Windows XP,Windows 2007 |
Driving system | stepper |
Gross power | <1000W |
Operating temperature | 5C-40C |
Operating humidity | 5%-95%(free of condensed water |
Assistant equipment | Exhuast-fans,water pump,iar pump |
