- Size: 10
- Place of Origin: JINAN
- Brand Name: Suke
- Model Number: SK-1325
- Weight: 700.000 kg

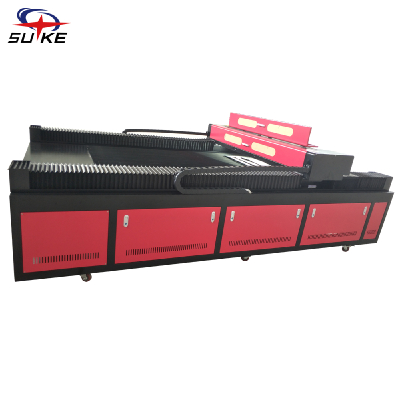

Characteristic
This type machine is a kind of laser cutting machine system equipped with Co2 laser tube,it is used to cut for Metal, acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc.
Technical Paremeter:
Model | SK1325 |
Working area(mm) | 1300*2500mm |
Laser tube power | 150w-180w |
Color | Orange gray/Red white |
Working life of tube | RECI tube:10000 hours lifespan, 9 months warranty Ordinary laser tube:1500 hours lifespan, 3 months warranty |
Engraving speed | 0 - 60000mm/min |
Cutting speed | 0-30000mm/min |
Resetting positioning accuracy | 0.01mm |
Laser tube cooling | Water cooling |
Laser type | co2 laser tube |
Max power | About 1kw |
Machine control | DSP controlling |
Working platform | knives table |
Power supply | AC 110 - 220V , 50 - 60Hz |
Min. shaping character | Chinese 2mm*2mm,English 1mm*1mm |
Supported graphic | BMP,CDR, PLT, DST, DXP, and AI |
Driving system | Three-phase Stepper motor(servo motor optional) |
Assistant equipment | Exhaust-fans, water cooling pump air assist |
Software supported | CorelDraw, AutoCAD , Photo shop |
Software | Laser works or Laser cut |
Operating temperature | 0°C~45°C |
Operating humidity | 5%~95% |
English manual | Tell you how to run the laser machine and also the problems and solutions |
Application
Cutting and punching soft materials, such as all sorts of Metal,clothing, leather, carpet,
suede fabric, denim jeans, stuffed toys, textiles, industrial fabrics etc.
