- Place of Origin: China
- Brand Name: Suke
- Model Number: SK5030-II
Product Features

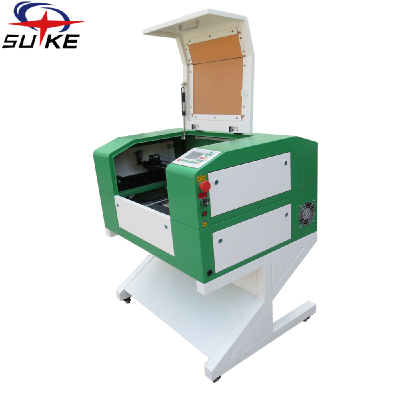

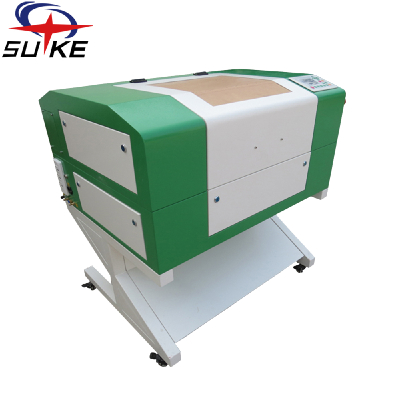

1 The SK5030 Laser engraver has USB port and offline operation, and LCD screen.
2. The SK5030 laser engraver uses laser cut software and is compatible with Corel Draw , Auto CAD andPhoto shop.
3. It offers fast speed and more efficiency!
4. The SK500 laser engraver offers high quality and a durable laser tube.
5. It has a nice and modern appearance and is very popular worldwide.
6. It is equipped with a motorized platform and can engrave on thicker materials.
Applications
● Wood ● Bamboo ●Marble ●Acrylic ●MDF ●Plexiglass ●Leather●Rubber ●Clothes●Paper●Plastic ● Other nonmetal materials.
Applicable industries:
●Advertisement ●Toy ●Shoes ●Arts and crafts ●Model ●Garments ●Construction industry and so on.
Technical parameter
Model | SK5030-II |
Working area | 500mm*300mm(19.7*11.8 inch) |
Color | Orange and gray ( More colors for optional) |
Laser tube power | 40w ,60w (Can be optioned ) |
Laser tube type | Sealed CO2 laser tube ( Water cooling 10.6um) |
Working life of tube | 1500 hours |
Engraving speed | 0 - 60000mm/min |
Cutting speed | 0 - 30000mm/min |
Min. shaping character | Chinese 2mm*2mm、English 1mm*1mm |
Resetting positioning accuracy | 0.01mm |
Up and down platform | Motorized up and down platform, Max 10cm |
Max power | Less than 1kw |
Machine control | DSP controlling |
Power supply | AC 110 - 220V , 50 - 60Hz |
Supported graphic | BMP, CDR, PLT, DST, DXF and AI |
Driving system | Stepper motor |
Assistant equipment | Exhaust-fans, water pump air pump.USB port |
Software supported | Corel Draw, Auto CAD , Photo shop |
Software | Laser cut software, USB port, LCD screen |
Software surrounding | Windows98/2000/XP/VISTA/2007 |
Operating temperature | 0℃~45℃ |
Operating humidity | 5%~95% |
English manual | Tell you how to run the laser machine and also the problems and solutions |
Optional parts | Red light pointer Auto focus |
Warranty:
1. 1 year for the whole machine.
2. 3 months for laser tuber,lens and mirror; 9 month for high quality Reci laser tube.
3. 6 months for equipments outfit, such as water pump, fan, air pump, etc.
4. Detailed manual and video to guide the uses how to use the machine and maintenance, also supply the specification settings for the speed and power to engrave or cut various material.
5. Other parts like electric power is broken, we can give you a new one. But for the control card, we need you send the broken one to us and we reback you a new one..
6. If you meet the problems, we can solve it with pictures, videos etc.
If any needs, feel free to contact me. My skype:sukelaser1.
