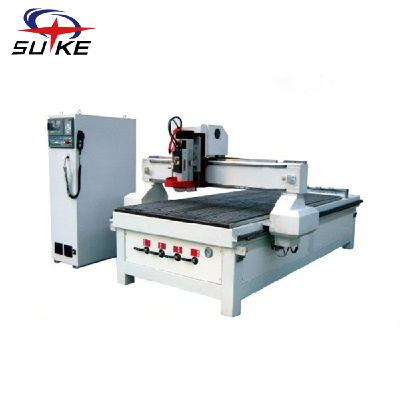

Wood Carving CNC Router Machine

Wood Carving CNC Router Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: Qingdao & Shanghai
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-11-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong, China
  • Brand Name:  Suke
  • Model Number:  SK-1325
  • Weight: 1100.000 kg

Product Features:

1. Whole lathe bed is in steel structure of high stability.

2. Racks and gears transmission with high-speed motor keeps smooth movement in fast and accuracy.

3. Breakpoint restoring function enable the machine continue to work after sudden stop, such as accident, tool breaking.

4. Wide software compatibility with processing files generated by Type 3,ArtCAM,Artcut,AutoCAD,JDPaint etc. CAD/CAM design software.



Technical Parameters

Model

SK1325

Working area (x*y*z)

1300*2500*600mm

Machine structure

Steel structure lathe bed and T-slot of sectional material

Work holding

By clamps and Rotary

X Y movement

Rack and gears

Z movement

Ball screw (German)

Guide/rail

Square rail/Taiwan HIWIN

Precision (mm)

0.07

Positioning accuracy (mm)

0.02

Repeatability (mm)

0.02

Idling speed (mm/min)

28000-32000

Working speed (mm/min)

15000

spindle

3kw Air Cooling

Available tools (mm)

Φ3.175~Φ12.7

Drive system

Stepper motors

Working voltage

AC220V±30V, 50HZ

Command code

G code (*.nc,*.mmg, 8.u00, etc.),*.eng

Control system

DSP

Compatible software

Compatible with any software generating G code file in window 98/XP/7

Optional parts

1. Square tube lathe bed.

2. by vacuum

3. Automatic tool changer

4. Servo motors

5.Tool cooling system with sink



  • Place of Origin:  Shandong, China
  • Brand Name:  Suke
  • Model Number:  SK-1325
  • Weight: 1100.000 kg


Technical parameters:



echnical Parameters

Model

SK1325

Working area (x*y*z)

1300*2500*600mm

Machine structure

Steel structure lathe bed and T-slot of sectional material

Work holding

By clamps and Rotary

X Y movement

Rack and gears

Z movement

Ball screw (German)

Guide/rail

Square rail/Taiwan HIWIN

Precision (mm)

0.07

Positioning accuracy (mm)

0.02

Repeatability (mm)

0.02

Idling speed (mm/min)

28000-32000

Working speed (mm/min)

15000

spindle

3kw Air Cooling

Available tools (mm)

Φ3.175~Φ12.7

Drive system

Stepper motors

Working voltage

AC220V±30V, 50HZ

Command code

G code (*.nc,*.mmg, 8.u00, etc.),*.eng

Control system

DSP

Compatible software

Compatible with any software generating G code file in window 98/XP/7

Optional parts

1. Square tube lathe bed.

2. by vacuum

3. Automatic tool changer

4. Servo motors

5.Tool cooling system with sink
