- Place of Origin: China
- Brand Name: Suke
- Model Number: SK1390

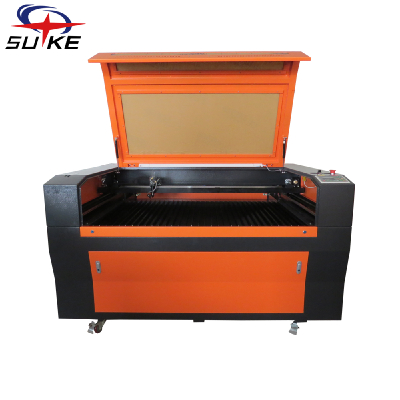

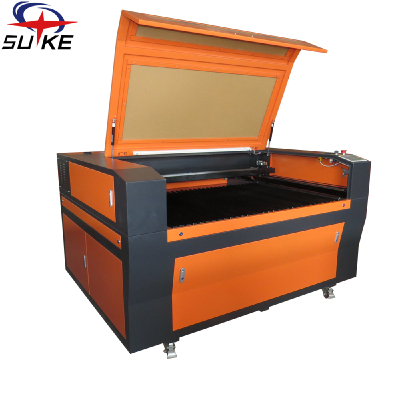

laser cutting and engraving machine for leather
Aplicable materials:
Wood, bamboo, marble, acrylic, plastic, cloth, rubber, glass, paper, leather, ceramics and other non-metal materials.
Applicable Industries:
Advertising industry, gift, leather, toy, mold, computer embroidery, construction industry, paper packing industry and as on.
Features:
1. Front and rear hole to pass long materials
2. Modern design and beautiful appearance
3. Use imported Taiwan Hiwin linear guide, more durable and high precision
4. Water protection switch ,safety switch and limit switch
5. Adopt DSP control system, and USB offline operation, LCD screen
6. Powerful production ability, can produce all kinds of laser machines, like double head laser , four head laser ,CCD camera laser, auto feeding fabric laser cutter, YAG metal laser engraver, separate marble laser etc.
Parameters:
Model | SK1390 |
Working area(mm) | 1300*900mm |
Laser tube power | 40w, 60w, 80w,100w,130w,150w (optional) |
laser tube type | Sealed CO2 laser tube/ or Reci laser tube, water-cooling, 10.6um |
Working life of tube | 1500hours for CO2 laser tube; 10000 hours for Reci laser tube |
Max Engraving speed | 0 - 60,000mm/min |
Cutting speed | 0- 30,000mm/min |
Location precision | <0.01mm |
Resetting positioning accuracy | 0.01mm |
Resolution ratio | <0.01mm |
Laser tuber cooling | Water cooling |
Power supply | AC 110 - 220V , 50 - 60Hz |
Min. shaping character | Chinese 2mm*2mm,English 1mm*1mm |
Supported graphic | BMP, HPGL, PLT, DST, DXP, and AI |
Driving system | Stepper motor |
360° slope engrave | Yes |
Cooling system | Water-cooling and protection system |
Operating system | Windows98/ME/2000/XP/VISTA/2007 |
Standard accessories | (01)laser engraving cutting software --laser cut 5.3(English version) (02)User manual of machine(English version) (03) User manual of software (04)USB cable (05)communication cable (06) air exhaust fan (07)air pump (08)3 reflecting mirrors (has been installed in the machine) (9)one focus lens(has been installed in the machine ) (10)one laser tube(has been installed in the machine) (11) tool box that you need to repair or maintenance (12) USB port LED panel(has been installed in the machine) |
EXTRA PARTS | (1) an extra laser tube (2) motorized up and down platform (3) rotary attachment (4) red dot printer (5) industrial chiller cw5000 (6) auto focus (7) 3 layer filter |
Software supported | CorelDraw, AutoCAD , Photo shop |
Operating temperature | 0°C~45°C |
Operating humidity | 5%~95% |
Gross power | ≤1000w |
Computer interface | USB port and Standard printer port |
English manual | Tell you how to run the laser machine and also the problems and solutions |
Warranty:
1. 1 year for the whole machine.
2. 3 months for laser tuber,lens and mirror; 9 month for high quality Reci laser tube.
3. 6 months for equipments outfit, such as water pump, fan, air pump, etc.
4. Detailed manual and video to guide the uses how to use the machine and maintenance, also supply the specification settings for the speed and power to engrave or cut various material.
5. Other parts like electric power is broken, we can give you a new one. But for the control card, we need you send the broken one to us and we reback you a new one..
6. If you meet the problems, we can solve it with pictures, videos etc.
If any needs, feel free to contact me. My skype:sukelaser1.
Please also notice that we have more laser engraver/cutter machines models with different watts laser power.
Model | Working size | Laser power |
SK2525 | 250x250mm | 40w Moshi software |
SK3030 | 300x300mm | 40w Moshi software |
SK4040 | 400x400mm | 40w Moshi software |
SK5030 | 500x300mm | 40w, 60w laser cut software |
SK6040 | 600x400mm | 60w,80w,100w, 120w 150w; Reci tube w2, w4 |
SK9060 | 900x600mm | 60w,80w,100w, 120w 150w; Reci tube w2 w4 w6 |
SK1280 | 1200x800mm | 60w,80w,100w, 120w 150w; Reci tube w2 w4 w6 |
SK1290 | 1200x900mm | 60w,80w,100w, 120w 150w; Reci tube w2 w4 w6 |
SK1390 | 1300x900mm | 60w,80w,100w, 120w 150w; Reci tube w2 w4 w6 |
SK1490 | 1400x900mm | 60w,80w,100w, 120w 150w; Reci tube w2 w4 w6 |
SK1610 | 1600x1000mm | 60w,80w,100w, 120w 150w; Reci tube w2 w4 w6 |
SK1225 | 1200x2500mm | 60w,80w,100w, 120w 150w; Reci tube w2 w4 w6 |
SK1325 | 1300x2500mm | 60w,80w,100w, 120w 150w; Reci tube w2 w4 w6 |
Note: above is our standard models, customize is accepted according your needs | ||
