- Size: 1.5
- Place of Origin: JINAN
- Brand Name: Suke
- Model Number: SK-6090
- Weight: 200.000 kg

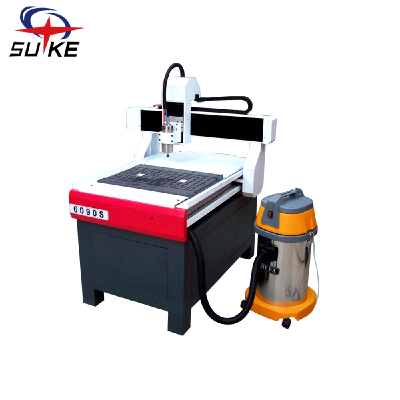

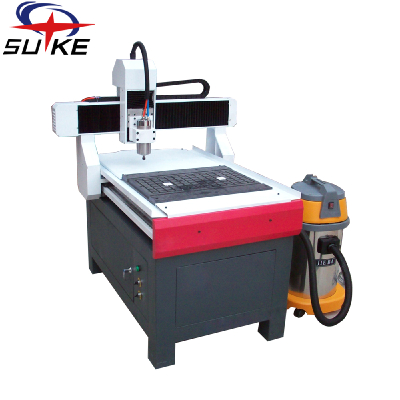

1. Applicable industry and materials of Advertising 6090 CNC ROUTER/small cnc router for PVC/WOOD and Metal :
Wooden door and furniture decoration, wooden crafts processing, electronic product, instrument industry, etc.
Wood, MDF, PVC, PCB, Acrylic, Circuit board, Aluminum, Copper etc.
Engrave on material surface, 3d engraving on violin panel, making guitar, erhu etc.
2. Features of Advertising 6090 CNC ROUTER/small cnc router for PVC/WOOD and Metal :
#T-slot table
#Cast iron body
#1.5Kw water cooling spindle
#Weihong Nk105 DSP system
#Stepper and Leadshine drivers
#Fuling inverter
#Filter
#Tool sensor
- Size: 1.5
- Place of Origin: JINAN
- Brand Name: Suke
- Model Number: SK-6090
- Weight: 200.000 kg
Technical Parameter of Advertising 6090 CNC ROUTER/small cnc router for PVC/WOOD and Metal :
Working area: | 600x900x100mm |
Spindle type: | Water cooled spindle |
Spindle power | 1.5kw |
Spindle rotating speed | 0-24000rpm |
Power supply: | AC220±10, 50 HZ |
Worktable: | T-slot table /Vacuum table |
Locating precision: | <0.01mm |
Min shaping character: | Character:3x3mm,letter:2x2mm |
Operating temperature: | 5°C-40°C |
Working humidity | 30%-75%(without condensed water) |
Working precision | ±0.03mm |
System resolution | ±0.001mm |
Control configuration: | Mach3/DSP/ NC studio control system |
Data transfer interface: | USB/PC |
System environment: | WINDOWS 2000/WINDOWS XP/ windows 7 |
Spindle cooling way: | Water cooling by water pump (optional: chiller) |
Graphic format supported: | G code: *.u00, * mmg, * plt, *.nc |
Compatible software | ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares…. |
Cutting thickness: | 0-40mm also (depends on different material) |
Z tool sensor: | yes |
Whole machine dimension: | 1500x980x1450mm |
Net weight: | 280KG |
Gross weight | 350KG |
packing | Plywood case (veneer wood case for export) |
Optional parts | 1. Water cooled type spindle (China brand or Italian brand) |
2. Bigger or smaller power spindles (6kw or 3kw) | |
3. High-grade cooling system (chiller, it has alarming system) | |
4. double-head or more heads | |
5. servo motors (China brand or Japan brand) | |
6. Auto tool change system | |
(this system need other systems accordingly, like LNC control system, servo motors etc) | |
7. Weihong DSP Control system ,NK105 Model or Mach 3 | |
8. other customerized features. |
