- Size: 13
- Place of Origin: Jinan
- Brand Name: Suke
- Model Number: SK-1325
- Weight: 700.000 kg

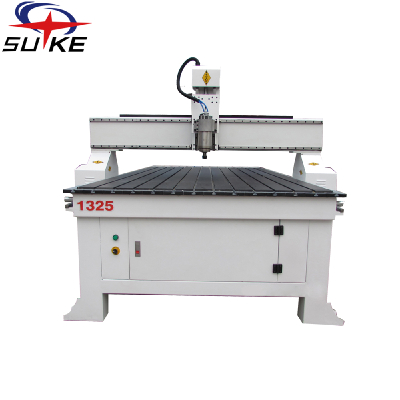

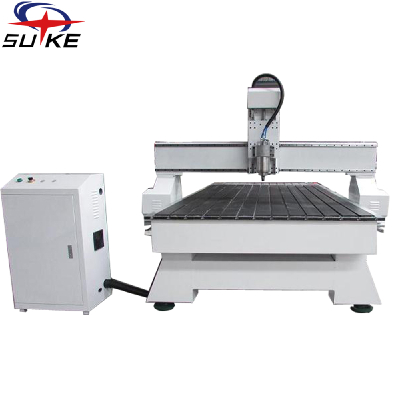

1. Applicable of 2015 cnc router wood
Suke wood cnc router machine is a new economical model, with high efficiency and accuracy for wood/MDF/acrylic,
can be used for cutting and engraving solid furniture, mahogany furniture, MDF paint door, solid wood door, composite door, cupboard door and window, beside cabinet, folding screen, ect., passing CE, FDA,ISO9001.
2. Features and parts pictures of cnc router wood
1. The cnc router machines’ body is strong, rigid, high precision, reliable and durable.
2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
3. cnc router using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
4. High-performance driven motor to ensure that the machines high speed and accuracy.
5. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred.
6. Breakpoint specific memory, power outages continued carving, processing time forecast, and other
functions to ensure that accidental processing.
7. Compatible with several CAD/DAM designing software,
e.g. Type3/Artcam/Castmate/Ucancam.
- Size: 13
- Place of Origin: Jinan
- Brand Name: Suke
- Model Number: SK-1325
- Weight: 700.000 kg
Technical Parameters of cnc router wood
| Working area: | 1300x2500x200mm |
| Spindle type: | China water cooling spindle |
| Spindle power | 3.0 kw |
| Spindle rotating speed | 0-24000rpm |
| Power (except spindle power) | 4.8KW (include powers of: motors, drivers, inverters and so on) |
| Power supply: | AC380±10, 50 HZ |
| Worktable: | T-slot table |
| Locating precision: | <0.01mm |
| Min shaping character: | Character:2x2mm,letter:1x1mm |
| Operating temperature: | 5°C-40°C |
| Working humidity | 30%-75%(without condensed water) |
| Working precision | ±0.03mm |
| System resolution | ±0.001mm |
| Control configuration: | Mach 3 control system |
| Data transfer interface: | USB |
| System environment: | xp/windows 7 |
| Spindle cooling way: | Water cooling |
| Graphic format supported: | G code: *.u00, * mmg, * plt, *.nc |
| Compatible software | ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares…. |
| Cutting thickness: | 0-40mm also (depends on different material) |
| Z tool censor: | yes |
| Whole machine dimension: | 3170x2070x1800mm |
| Net weight: | 1300KG |
| Gross weight | 1450KG |
| packing | Plywood case (veneer wood case for export) |
| Optional parts | 1. air cooled type spindle 2. Bigger or smaller power spindles (6kw or 2.2 kw) 3. High-grade cooling system (chiller, it has alarming system) 4. double-head or more heads 5. servo motors (China brand or Japan brand) 6. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc) 7. DSP Control system ,or Mach 3 8. other customerized features. |
